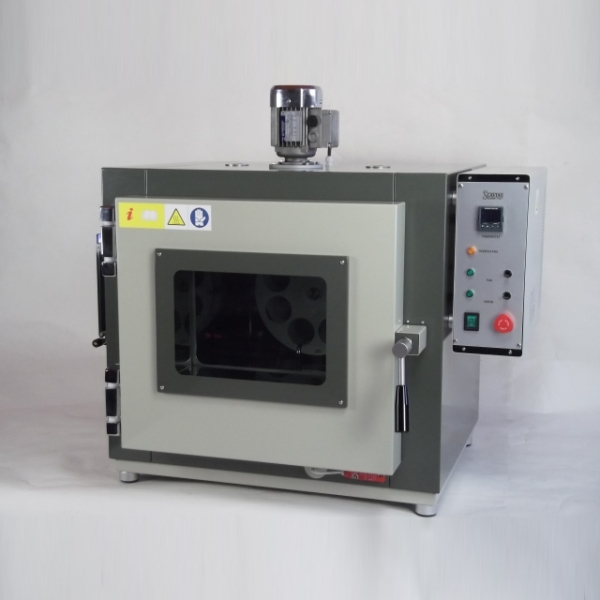

Apparatus For Determining The Thin Film Volatility Of Bitumen
The apparatus, in acc. with ASTM D 2872 - EN 12607, consists of a forced air circulation oven suitable for temperatures up to 180°C and equipped with a rotating shelf placed inside along with a coil that preheats the air directed into the sample container. This test is used to determine the effect of heat and air on a moving film of semi-solid asphaltic materials. The effects of this treatment are determined from measurements of the properties of the asphalt before and after having heated in a oven for 75 minutes at 163°C a moving film of asphaltic material while air at a rate of 4 l/min is directed against the sample.
| Standards | ASTM D 2872, EN 12607 |
|---|
The apparatus, in acc. with ASTM D 2872 - EN 12607, consists of a forced air circulation oven suitable for temperatures up to 180°C and equipped with a rotating shelf placed inside along with a coil that preheats the air directed into the sample container. This test is used to determine the effect of heat and air on a moving film of semi-solid asphaltic materials. The effects of this treatment are determined from measurements of the properties of the asphalt before and after having heated in a oven for 75 minutes at 163°C a moving film of asphaltic material while air at a rate of 4 l/min is directed against the sample.
| Standards | ASTM D 2872, EN 12607 |
|---|---|
| Brand | Scavini |
| Country of origin | Italy |
| Warranty | Manufacturer |
| Service | In-region |
Contact us for documentation — info@chemparts-me.com.
