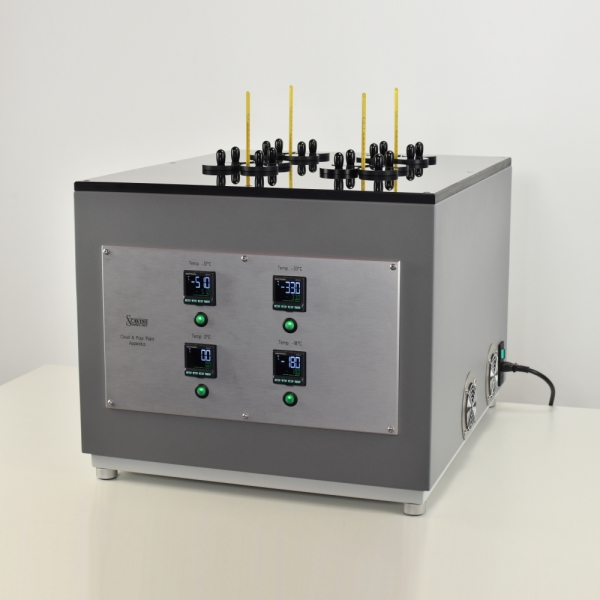

Cloud And Pour Point Benchtop Cabinet

The first compact benchtop Cloud and Pour Point bath on the market with Stirling cooling compressors capable to reach -70°C. One, two, three four and five-position units available with four or eight jackets for each temperature. Compact, reliable, modern, smart. ... Cloud and pour point bath consists of a small benchtop unit with one, two, three, four or five groups of four or eight jackets: each group is equipped with a dedicated Stirling cooling compressor capable to reach -75°C. Electronic controllers permit to keep the temperatures stable with +/0,1°C accuracy while a defrosting device maintain the top surface free from condensing humidity and icing. Powder coated compact benchtop case. Insulating acrylic cover with insulated lids. Defrosting device that keeps the top surface free from condensing water and icing. Aluminium jackets, four or eight for each temperature. One dedicated Stirling liquid-helium cooling compressor for each group of jackets: temperature range: from ambient to -75°C. One thermometer jacket for each group of jackets. Microprocessor thermoregulators with PID action and built-in digital display 0.1°C accuracy. Probe: Pt100 RTD. Anodized aluminium control panel with engraved indications and dedicated switches for each temperature. Easy access control box. English written user's guide and installation instructions. For 220 V/50-60 Hz connections. Power consumption 150W (single unit) to 800 W (fiveposition unit). CE marked. One, two, three, four and five-block units available with either four or eight jackets for each temperature: custom units upon request. Cloud and pour point bath CAPP-104 Single unit (one group of four jackets). Dimensions: 420 x 420 x 500 mm, 15 kg approx. Cloud and pour point bath CAPP-204 Twin unit (two groups of four jackets). Dimensions: 560 x 420 x 500 mm, 32 kg approx. Cloud and pour point bath CAPP-304 Three-position unit (three groups of four jackets). Dimensions: 560 x 640 x 500 mm, 62 kg approx. Cloud and pour point bath CAPP-404 Four-position unit (four groups of four jackets). Dimensions: 560 x 640 x 500 mm, 68 kg approx. Cloud and pour point bath CAPP-504 Five-position unit (five groups of four jackets). Dimensions: 1200 x 420 x 500 mm, 80 kg approx. Cloud and pour point bath CAPP-108 Single unit (one group of eight jackets). Dimensions: 480 x 420 x 500 mm, 18 kg approx. Cloud and pour point bath CAPP-208 Twin unit (two groups of eight jackets). Dimensions: 680 x 420 x 500 mm, 42 kg approx. Cloud and pour point bath CAPP-308 Three-position unit (three groups of eight jackets). Dimensions: 680 x 640 x 500 mm, 74 kg approx. Cloud and pour point bath CAPP-408 Four-position unit (four groups of eight jackets). Dimensions: 680 x 640 x 500 mm, 80 kg approx. Cloud and pour point bath CAPP-508 Five-position unit (five groups of eight jackets). Dimensions: 1200 x 420 x 500 mm, 95 kg approx. ACCESSORIES Cloud and pour point bath CAL001 PT100 simulator CAL003 Official Certificate for Pt100 simulator CONSUMABLES Cloud and pour point bath AD0097-C00 Test jar with sample level graduation AD0097-C01 Centrally bored cork for test jar AD0097-C02 Gasket for test jar AD0097-C03 Disk (to be placed on the bottom of the jacket) TA005C-N00 ASTM 5C thermometer (-38°C/+50°C) TA006C-N00 ASTM 6C thermometer (-80°C/+20°C) Specifications Cloud and pour point bath may vary without notice. Cloud and pour point bath is supplied bare without glassware, diffusers, accessories and consumables.
